UIP WIFI E affordable intelligent high flow peristaltic pump stepper motor 100V-240VAC adjustable dosing pump 0.5-1500ml/min touch screen control
✔️ High-flow peristaltic pump with touchscreen, 0.5-1500 mL/min, 100-240 VAC
The UIP WIFI-E is a high-flow peristaltic dosing pump designed for precise fluid transfer, dispensing, and filling in labs, manufacturing lines, beverage production, and chemical handling. It features a 4.3-inch touch screen for easy operation, the KK1800 pump head for quick tube changes, and multiple control interfaces to fit into automation setups. Power is 100-240 VAC (<50 W); speed 0.1-350 rpm; flow 0.5-1500 mL/min; silicone pump tube S18: 7.9 mm ID × 11.1 mm OD. Dimensions are 324 × 164 × 219 mm and weight ~3.2 kg. Supports touch screen, RS485, 0-5/10 V analog, and foot switch control; two modes (continuous and ratio); flow calibration; power-down parameter saving; remote firmware upgrades; back panel uses quick-connect terminals for easy wiring. Pack size: 1 unit.

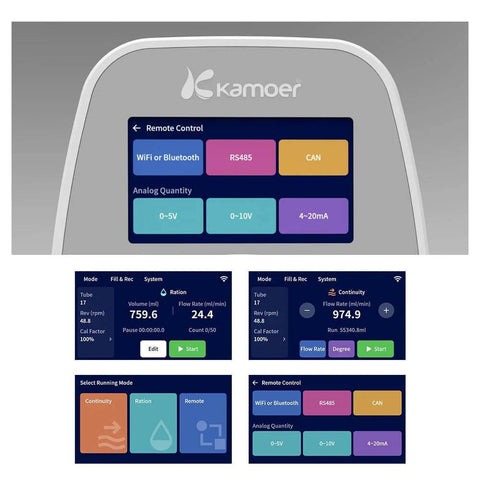

✅ 4.3" touchscreen control panel for intuitive operation✅ Voltage 100-240 VAC; power under 50 W
✅ Speed range 0.1-350 rpm; flow 0.5-1500 mL/min
✅ Tube head KK1800 with quick-change tube; S18 tube: 7.9 mm ID x 11.1 mm OD

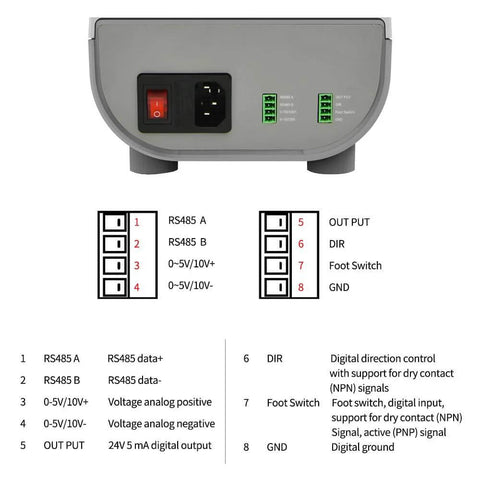

✅ Back panel with quick-connect terminals for easy wiring
✅ Multiple control options: touch screen, RS485, 0-5/10 V analog, foot switch
✅ Two operating modes: continuous and ratio dosing; flow calibration
✅ Power-down memory; remote firmware upgrades
✅ Compact footprint: 324 × 164 × 219 mm; weight ~3.2 kg; suitable for fluid transfer, dispensing, filling
💡 What is a peristaltic pump used for in fluid handling? This technology is built for clean, controlled liquid transfer. - Non-contact, contamination-free pumping suitable for beverages and chemicals - Precise dosing with programmable flow and calibration - Flexible control options for automation integration - Easy tube changes with KK1800 head for quick maintenance This setup delivers reliable, repeatable dosing in labs and production environments.
