Top Shelf 25Mm Ball Screw And Linear Guide Rail Kit For Cnc Projects Featuring Anti Backlash Sfu2505 Design Including Dual Hgh25 Rails Four Glide Blocks And Precision C7 Grade Heavy Duty Drive Assembly For Rock Solid Motion Control

Precision CNC Linear Guide And Ball Screw Drive Kit

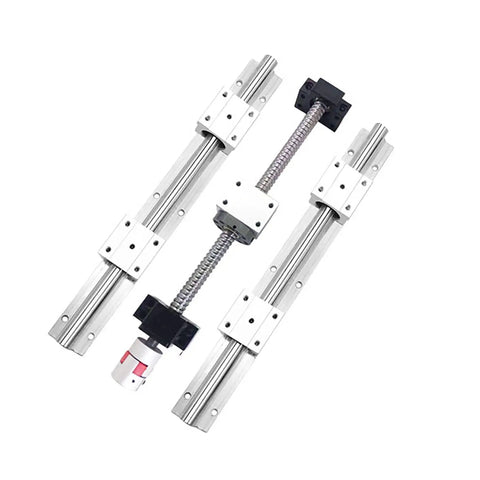

✔️ SFU2505 C7 drive linked with 240mm tracks and four slider blocks

You want a handy motion control kit that mounts fast and handles repeat accuracy on your router or milling station. This complete assembly replaces worn drives and brings steady repeatability to your benchtop tools.

✅ SFU2505 ball screw shows a 25mm 0.98 inch diameter plus a 5mm 0.20 inch pitch for steady pull
✅ Dual HGH25 guides display a 9.45 inch 240mm length alongside a 0.63 inch 16mm shaft width
✅ Carbon steel tracks mate with a 14mm 0.55 inch coupling opening for straightforward motor setup
✅ Four sealed slider units lower drag and support clean gliding along the entire path

💡 What dimensional tolerances and alignment checks guarantee smooth travel on a custom CNC gantry?
Locking those clearances from the ground up stops micro jumps and extends tool life on your spindle.
- Backlash free nuts keep positioning real precise when reversing direction under heavy feeds
- Properly torqued rail bolts eliminate rocking patterns that ruin surface finish quality
- Clean coupler seating transfers full rotational energy without slipping heat or power loss

✝️
