Stainless Steel Fuel Sending Unit with OKI Reed Switch 240-33 Ohm 11 Inch Arm Type Replacement for Marine Fuel Tank Featuring Rock Solid Reliability and Bombproof Durability for Your Ride
Stainless Steel Fuel Sender Reed Switch Marine Gauge Output
✔️ 316SS Reed Switch, 240-33Ohm, SAE 5-Hole, Float, Tank Gauge Match
You get a stainless steel fuel sending unit that replaces worn arm-type senders in your boat or truck. The direct fit design plugs right into existing wiring, so you can restore accurate gauge readings without messing with tank adjustments. This handy setup works with fuel or water level gauges and handles tough surroundings thanks to a rugged 316 stainless steel build. Mount it with the included hardware and gaskets for a secure install that keeps corrosion away over time.
✅ OKI Reed Switch imported from Japan for superior durability and zero moving parts.

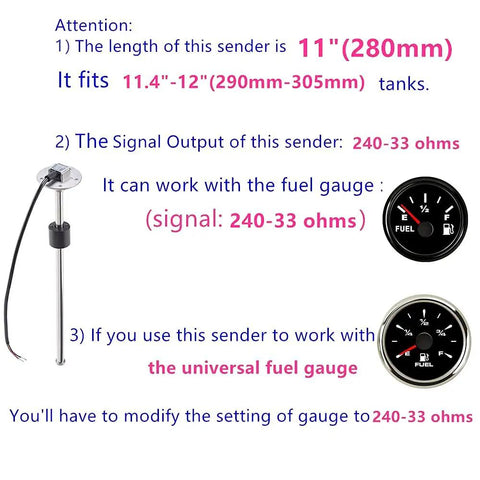

✅ American standard output reads 240 ohms at empty and 33 ohms at full tank levels.
✅ SAE 5-hole mounting pattern fits widely used tanks with easy installation using hardware.

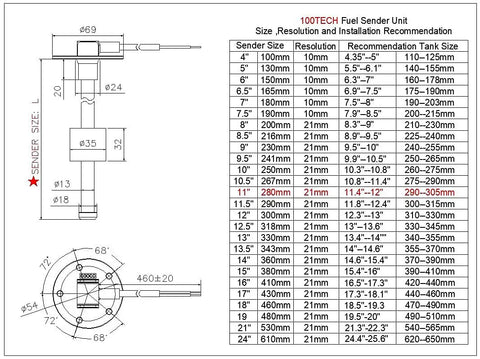

✅ Float measures 1.38 inches (35mm) wide; drill a clean 1.50 inch (38mm) hole if needed.
✅ Designed for arm-type replacement sensors that support fuel or water level gauges.
✅ Includes gasket, mounting screws, and illustrated wiring instructions for straightforward connection.
✅ Backed by a 2-year limited warranty with free lifetime technical support when required.
✅ Measure from top to bottom inside tank and subtract one inch to prevent sensor impact.
💡 What makes a reed switch fuel sender better than traditional float arms?
Choosing the right sensor technology improves accuracy and reduces maintenance cycles on boats and trucks.
A reed switch sender eliminates wear-prone contact points, keeping resistance consistent over years of vibration.
You avoid frequent gauge jumps and electrical noise that plague older swim-arm designs.
These handy units deliver steady signals straight to your dashboard monitor without signal degradation.
- Select open circuit resistance values to match your gauge specifications for accurate empty and full readings.
- Mount the unit securely using the 5-hole pattern to minimize stress from engine vibration and wave action.
- Maintain probe clearance by measuring tank floor distance and allowing space for the float arc during refueling steps.
