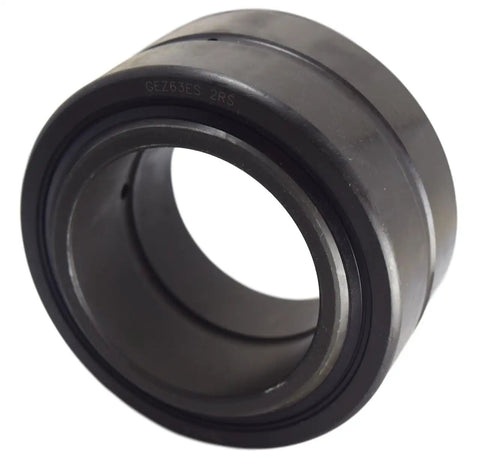

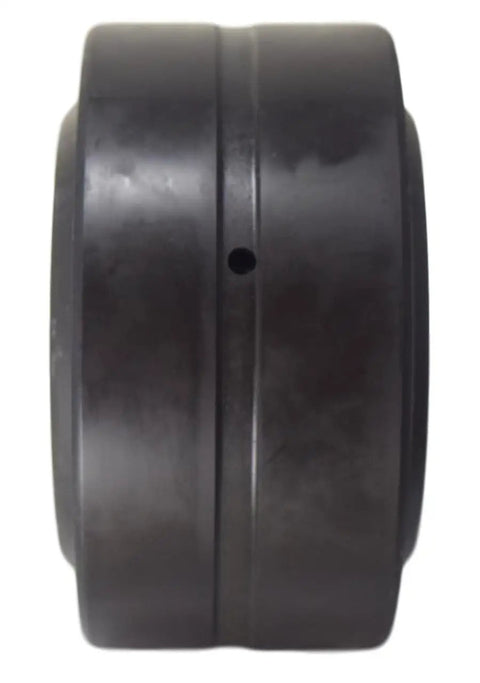

Knockout 2.5 Inch Sealed Spherical Plain Bearing Machined From Tough 52100 Chrome Steel Built Tight For Heavy Duty Rigging Smooth Oscillating Motions And Solid Misalignment Adjustments

Reliable Sealed Spherical Plain Bearings (single unit)
✔️ 2.50 inch bore 52100 chrome steel body with dual seals

Spherical plain bearings pivot smoothly where machine links swing heavy loads. You get stable articulation when shafts tilt slightly under pressure. These sealed components handle oscillating motions and misalignment adjustments on trucks without frequent maintenance. Compatible swaps cover SKF GEZ208ES-2RS, National GEZ63ES-2RS, and RBC B40-LSS models.

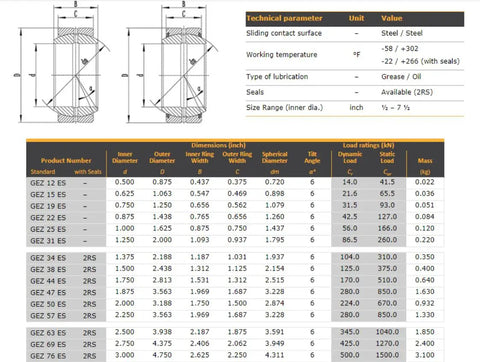

✅ Bore diameter measures 2.50 inches for direct axle engagement
✅ Outside diameter spans 3.938 inches across the machined housing
✅ Inner ring width extends 2.187 inches for solid bracket mounting
✅ Outer race width sits at 1.875 inches for secure frame fitting

💡 How do sealed spherical plain bearings manage combined radial and thrust forces during continuous pivoting cycles?
The self-aligning architecture equalizes stress across the hardened raceway to prevent edge wear.

- Molybdenum disulfide coatings cut startup drag when the joint snaps back direction.

- Dual silicone lips shield against road grime while supporting heavy static loads.

✝️
