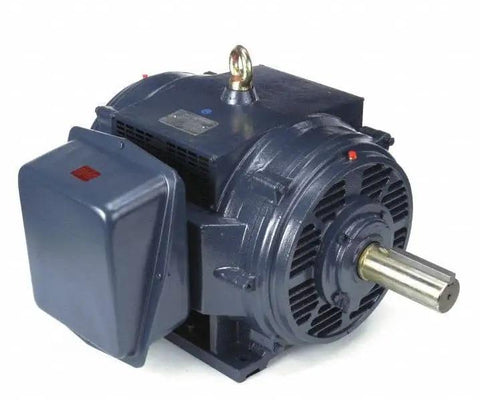

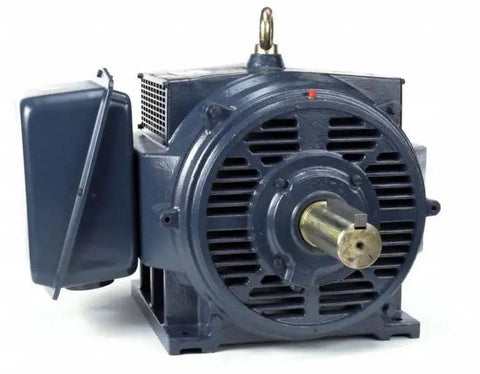

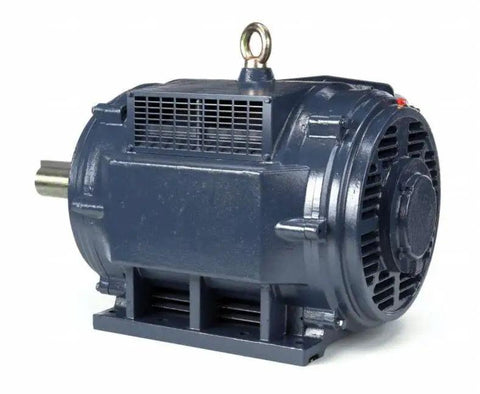

Heavy Duty 100 Hp Three Phase Electric Motor 1800 Rpm 230/460 Volt 404T Frame With Ball Bearings And Rigid Base Mount For Rock Solid Shop Floor Or Plant Workloads With Class F Insulation

Powerful 100hp Motor For Industrial Plant Setup
✔️ Nema 404t Frame, 1800Rpm, Rigid Base Plate, 2 7/8 Inch Shaft

You get a rugged general purpose drive built for constant plant floor cycles. The open drip proof casing shields internal components from shop dust while the class F thermal rating handles sustained heat spikes. You drop this unit directly onto conveyors, pumps, or milling rigs where steady torque keeps production moving.

✅ 100 horsepower output at 1800 rpm for steady heavy loads
✅ 230/460 volt single feed wiring listed right on the nameplate tag
✅ 1.15 service factor gives you room for sudden startup surges
✅ Reversible rotation direction fits left or right hand drives
✅ Two inch seven eighth keyed shaft measures seven inch four down the line

💡 How do you wire a three phase electric motor for high torque industrial tools?

Hook your main power leads up to the terminal board following the stamped wiring diagram on the motor housing. You will find this setup handy when switching between different heavy machines on a shared breaker.

• Select the correct delta or wye bridge bars based on your actual shopline voltage setting.
• Route the conduit away from sharp sheet metal edges so you avoid chafing the copper windings.
• Verify the drive alignment with a laser dial indicator before applying full load to the shaft.
• Ground the chassis bolt directly to your safety panel to protect sensitive plant controls from noise.

✝️
