Closed Loop Stepper Motor 1 Axis CNC KIT 6.5 Nm/920.48oz.in 6.0A Nema 34 Motor with 1.5m Cables & 0-8.5A 20-80VAC/30-110VDC Driver CL86Y-V20

High-torque closed-loop NEMA 34 CNC kit with encoder for precise motion
✔️ Includes 1 motor, 11 CL86Y-V20 drivers, 1 RS232 cable, and 1.5m cables

Dimension	Metric	Imperial
Frame size	86 x 86 mm	3.39 x 3.39 in
Body length	120 mm	4.72 in
Shaft diameter	14 mm	0.55 in
Shaft length	37 mm	1.46 in
D-cut length	25 mm	0.98 in
Cable length	1500 mm	59.06 in

✅ 6.50 Nm holding torque, 1.8° step angle, 2-phase, 4-lead

✅ Encoder 1000 PPR (4000 CPR), optical incremental, high resolution

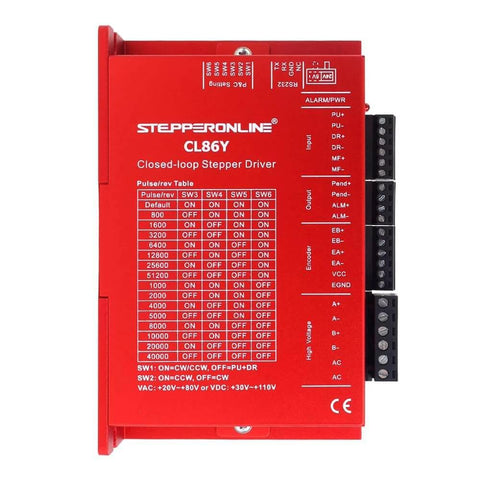

✅ CL86Y-V20 closed-loop driver, 0-8.5A peak, 20-80VAC/30-110VDC

✅ 16 subdivisions for ultra smooth motion control and encoder feedback

✅ 1500 mm cable length, ready for CNC wiring across machines

✅ Frame and shaft specs: 86x86 mm frame, 14 mm shaft, 37 mm length

✅ Insulation class B rated to 130°C for reliable operation

✅ Kit includes RS232 debug cable and 11 CL86Y-V20 drivers

✅ Great for CNC mills, laser cutters, 3D printers, and automation tasks

💡 What is a closed loop stepper motor with encoder used for in CNC systems?

It helps keep position precise and prevents missed steps during fast moves. * closed loop stepper motor with encoder for CNC precision and reliability * encoder feedback avoids missed steps in high speed milling * compatible with CL86Y-V20 drivers for tight control in automation
