24 Volt Linear Actuator with 6 Inch Stroke and Rock Solid 440 Pound Push Pull Capability Heavy Duty IP65 Waterproof Electric Motor Built Tough for Rugged Projects and Smooth Automation Workflows

Heavy duty twenty four v actuator for precise task work

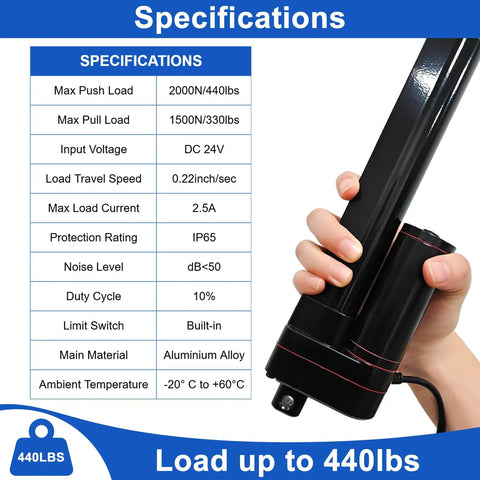

✔️ 24V dc drive, 6 in travel, 440 lb force, ip65 housing

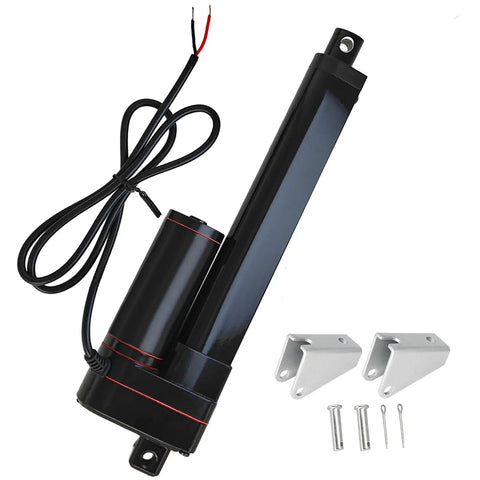

You get a straightforward linear actuator built for moving heavy gear without fuss. This handy unit pushes and pulls firmly for your garage doors, adjustable tables, camper panels, and reclining chairs. You clip the mounting brackets right onto wood or steel frames and trust the weather seals to block moisture and sawdust.

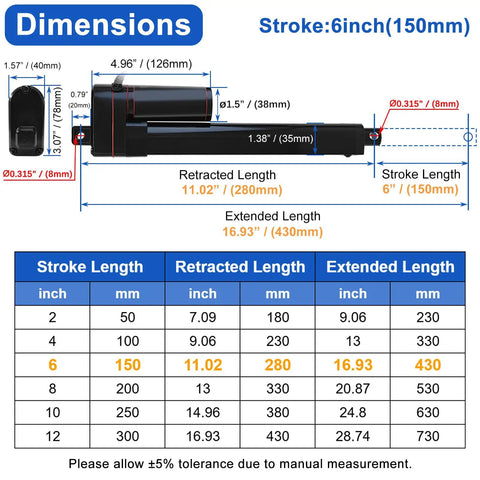

✅ 6 inch stroke extends to 16.93 inch total length covering 430 millimeters of operational space
✅ 11.02 inch collapsed footprint fits inside 280 millimeters of clearance gaps easily
✅ 440 pound thrust capacity moves up to 2000 newton loads without stalling under pressure
✅ 0.31 inch per second feed rate matches 8 millimeters per second for predictable sliding
✅ 2.5 amp peak draw runs on 40 to 50 watt power circuits stable enough for battery backups

💡 Why choose sealed electric linear actuators for heavy lifting machines instead of pneumatic systems

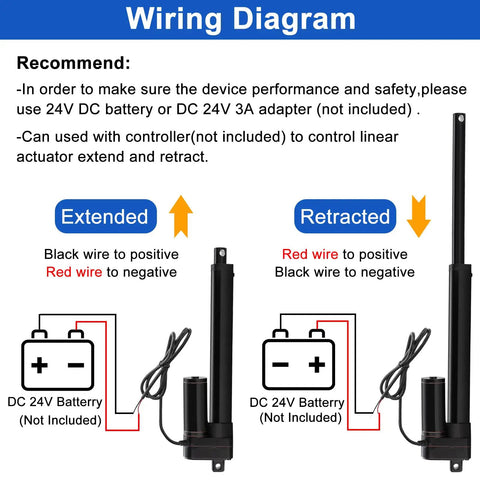

Electric slide rails deliver consistent push pull force without needing bulky compressor tanks. - Hand wire terminals connect directly to standard controllers for handy setup around your workspace
- Self locking screws grip firmly when power cuts out to keep platforms locked in place
- Rubber boots shield inner threads from sawdust and keep movement smooth all day long

✝️
